APPLICATION

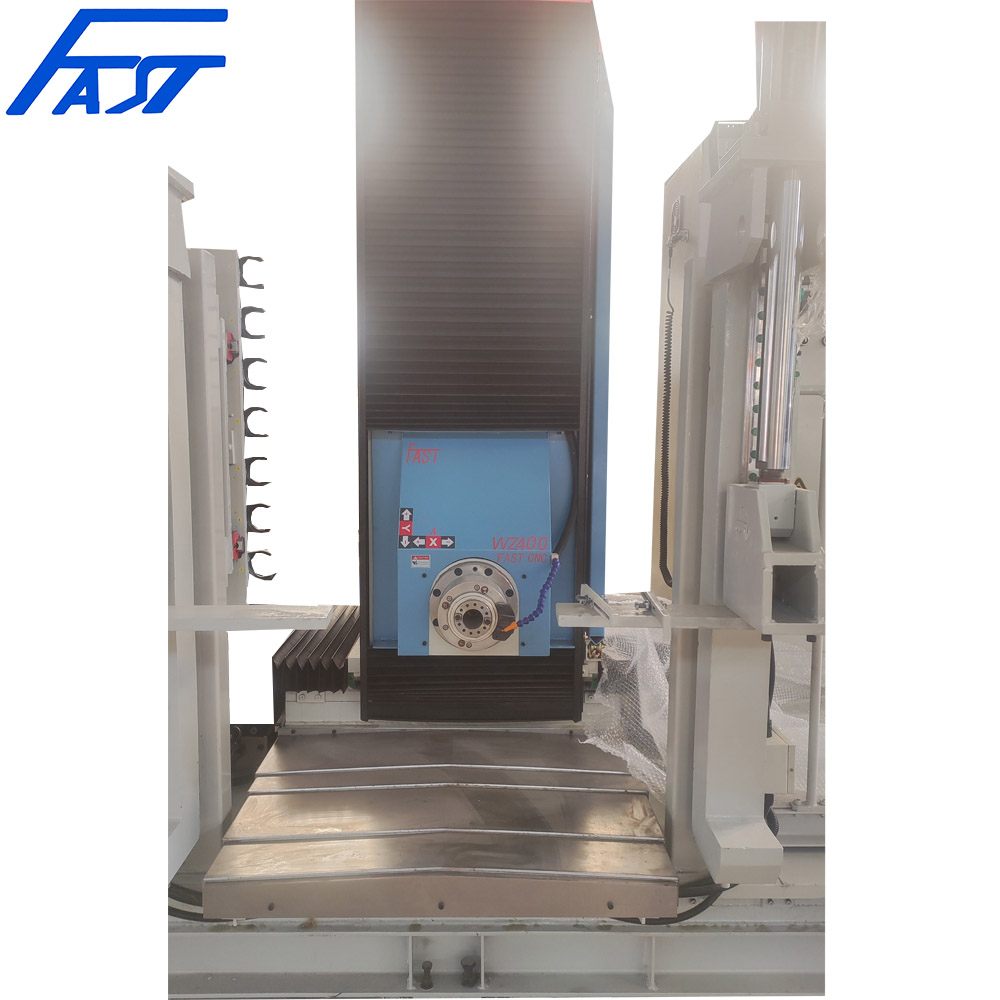

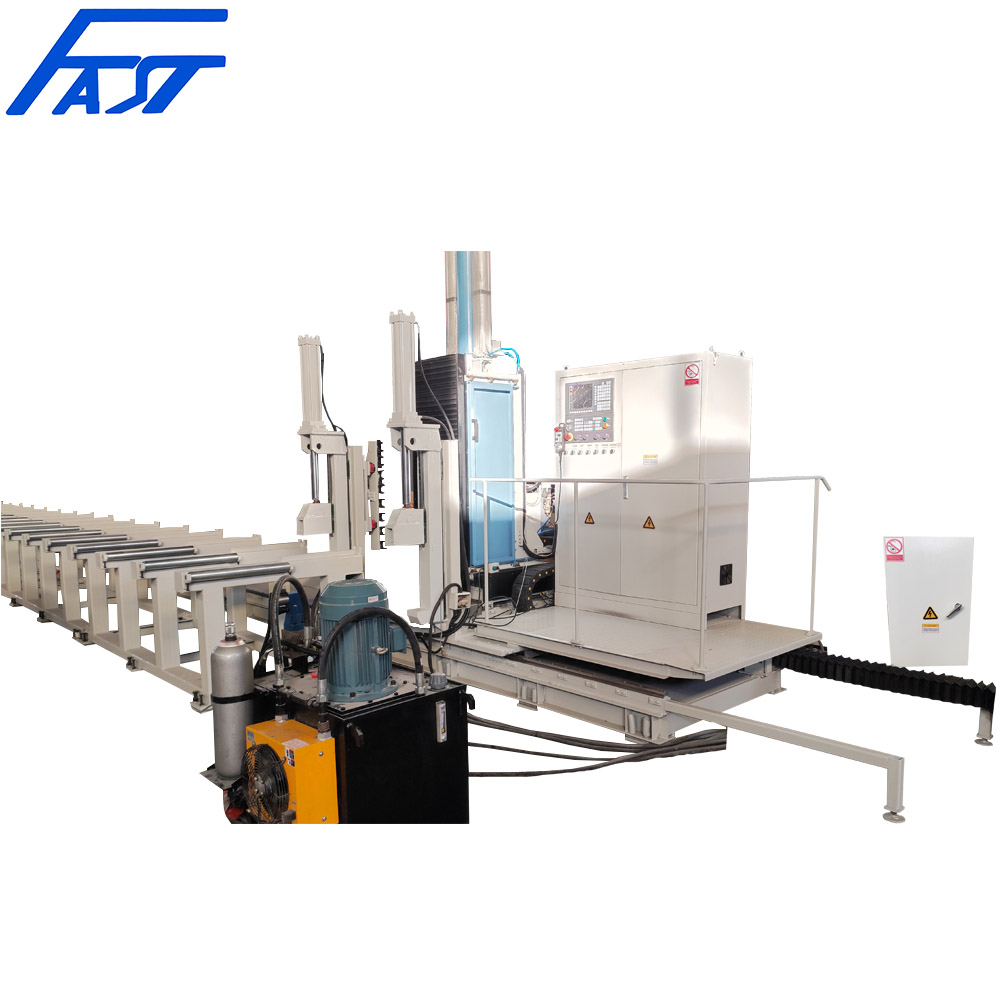

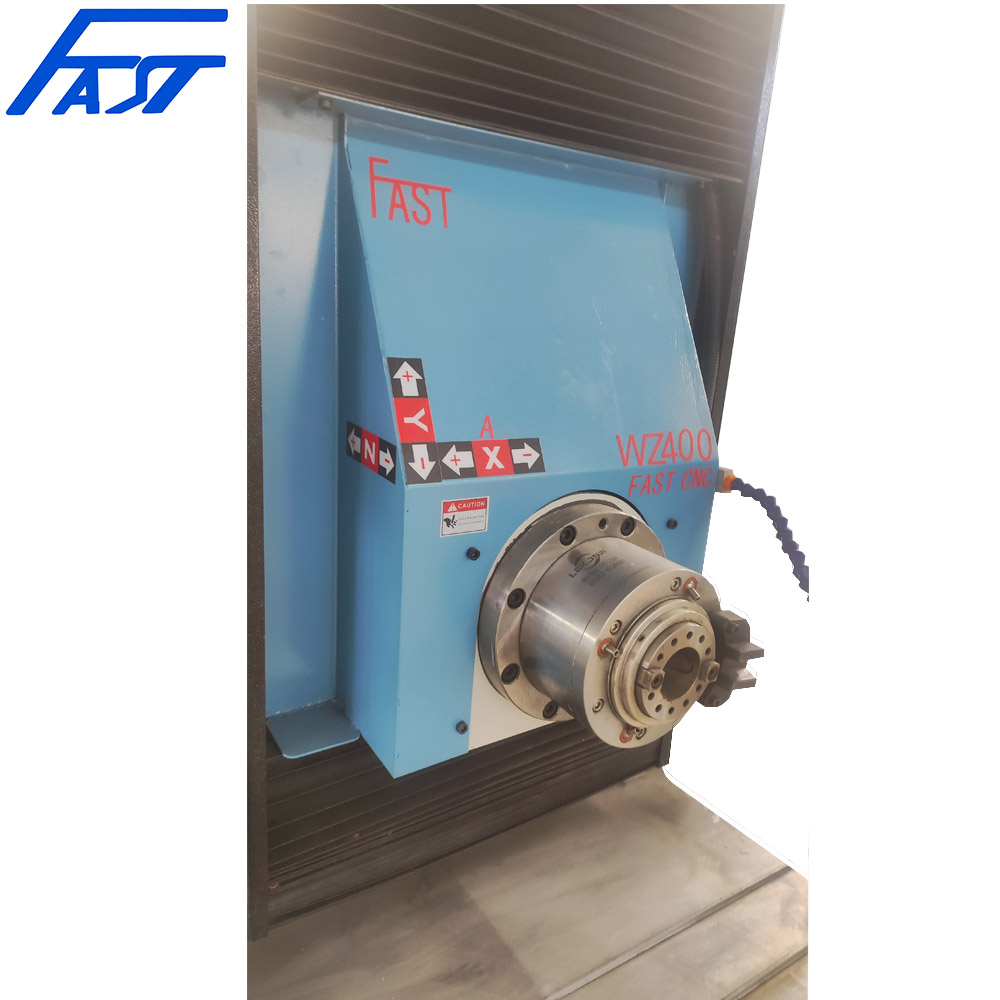

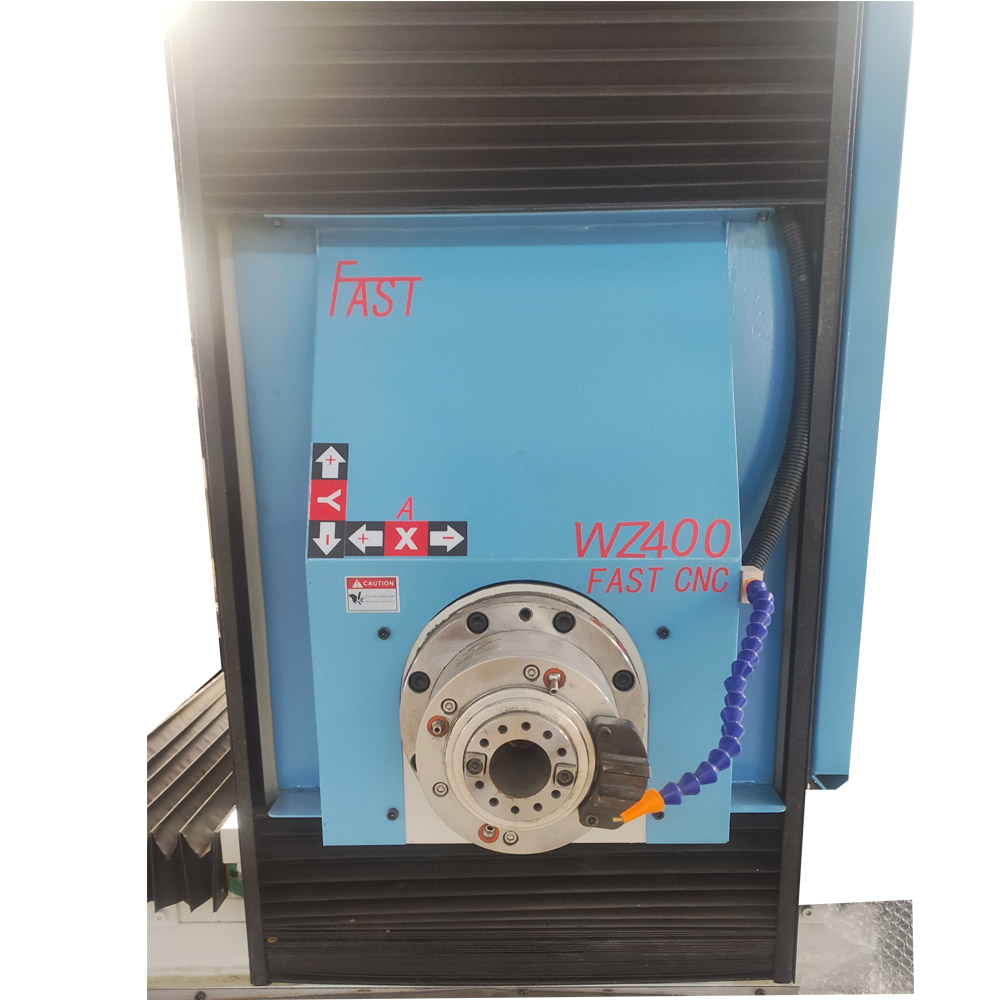

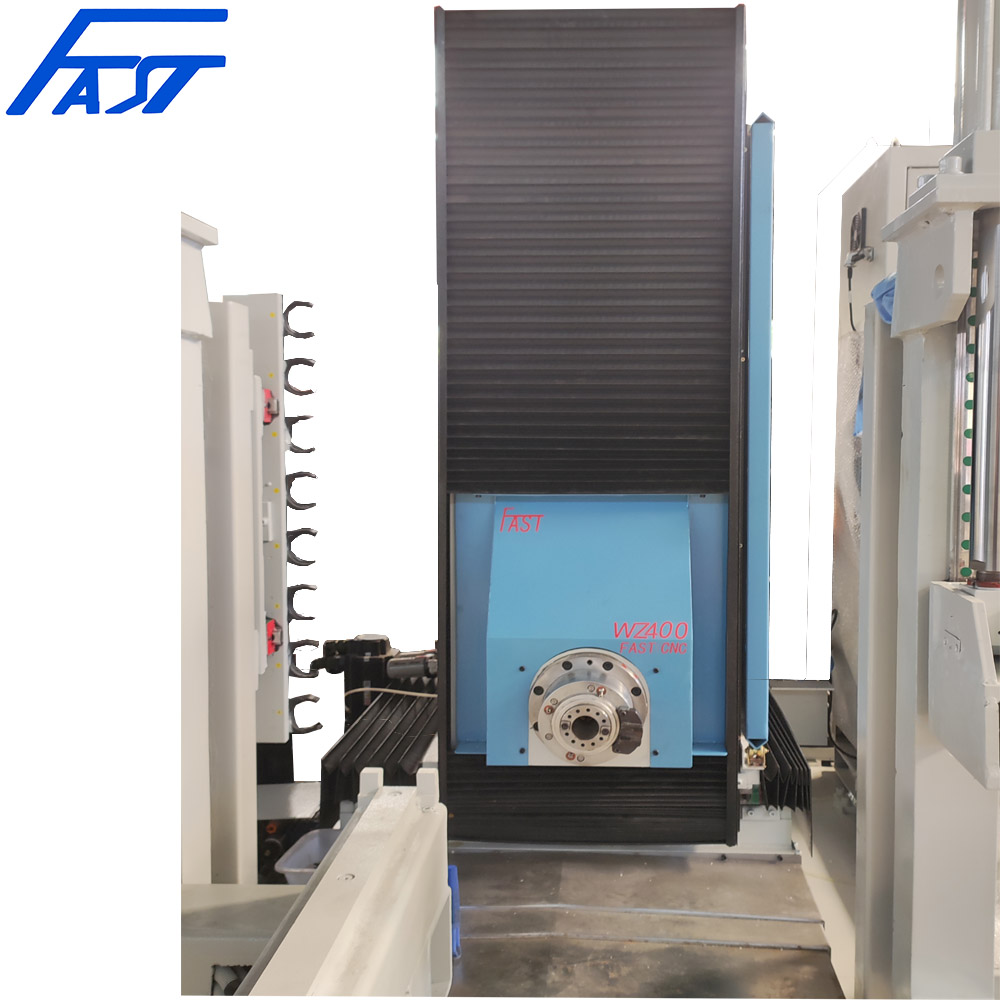

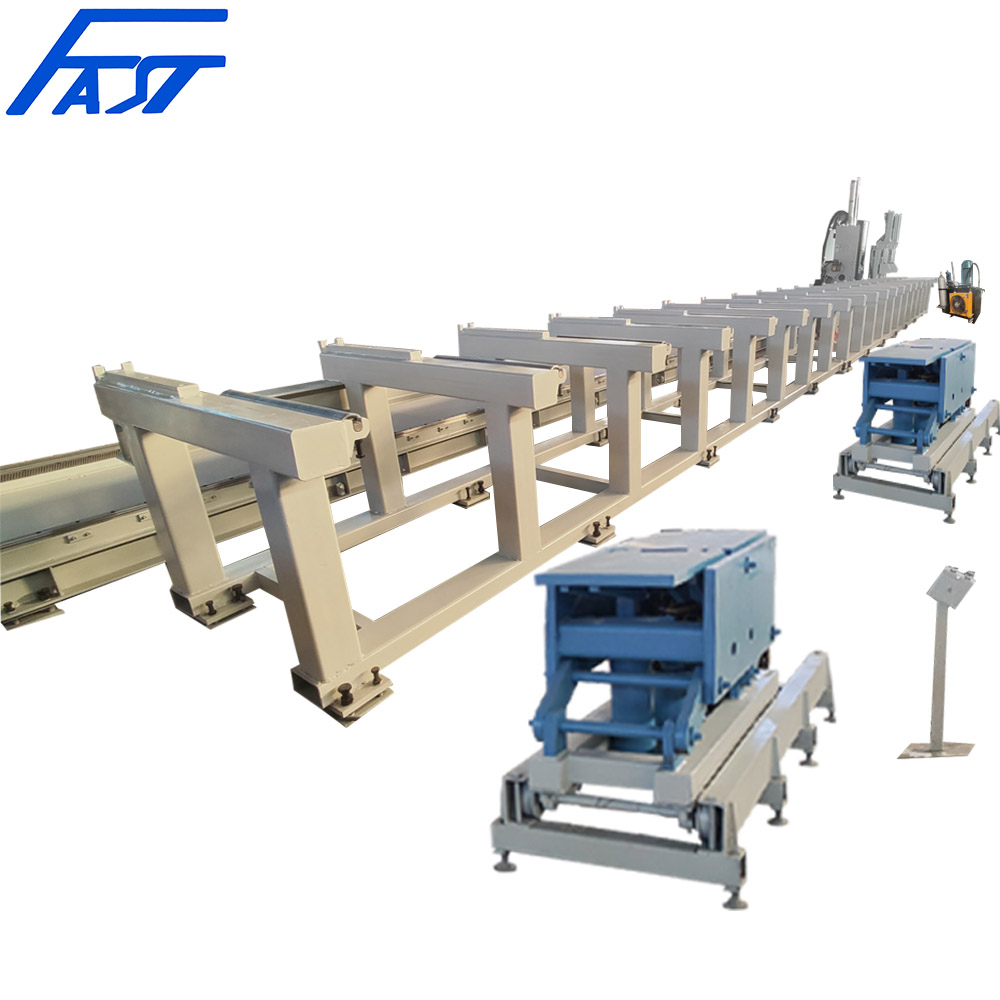

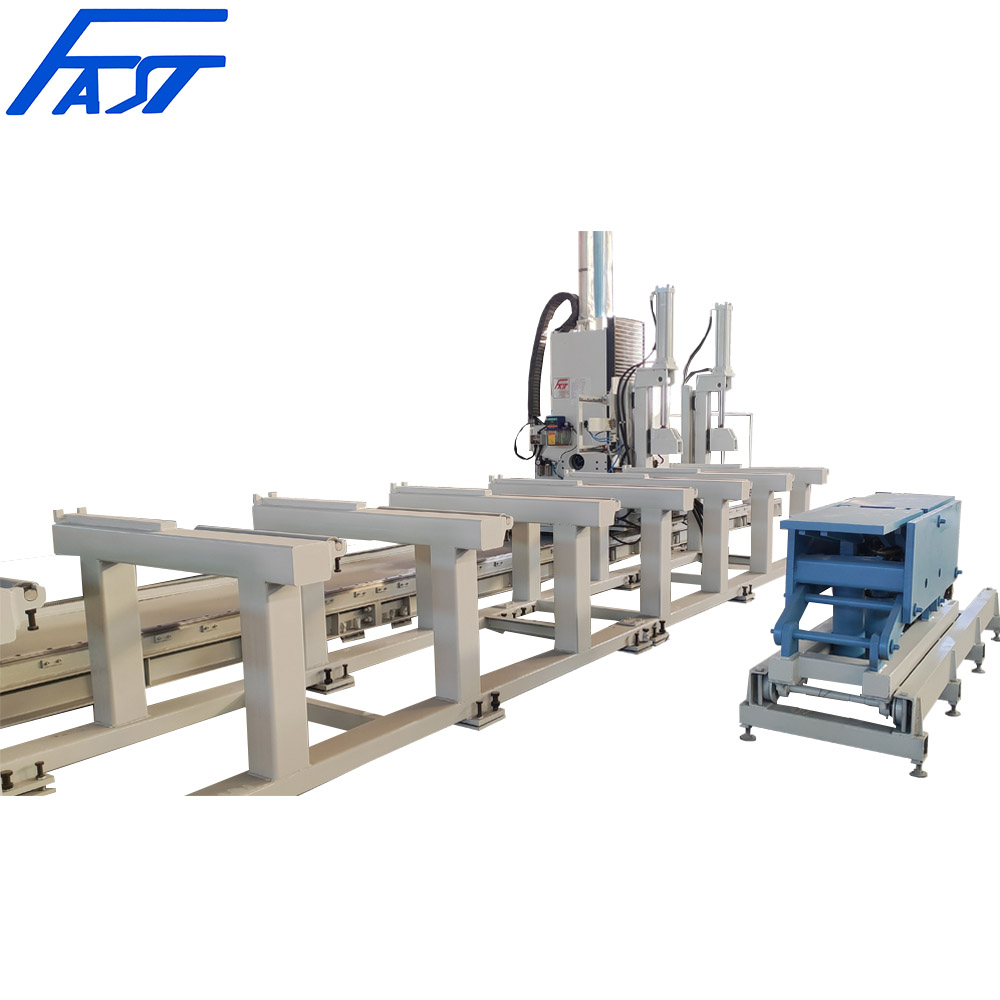

- This machine is mainly used for single-sided drilling of H-shaped steel (L, T-shaped steel), channel steel and square pipe, and is widely used in steel structure buildings, bridges, three-dimensional garages and other industries. The 4+1-axis CNC single-sided drilling machine for profiled steel adopts a structure in which the host moves and the workpiece is fixed.Servo motors realize the positioning of the spindle on the side of the profiled steel, that is, the longitudinal direction and the vertical direction, and the servo feeding of one spindle. The spindle is driven by a servo spindle motor via a pulley and a belt. This machine tool has high hole positioning accuracy and high drilling efficiency, and is an indispensable equipment in the steel structure manufacturing industry.

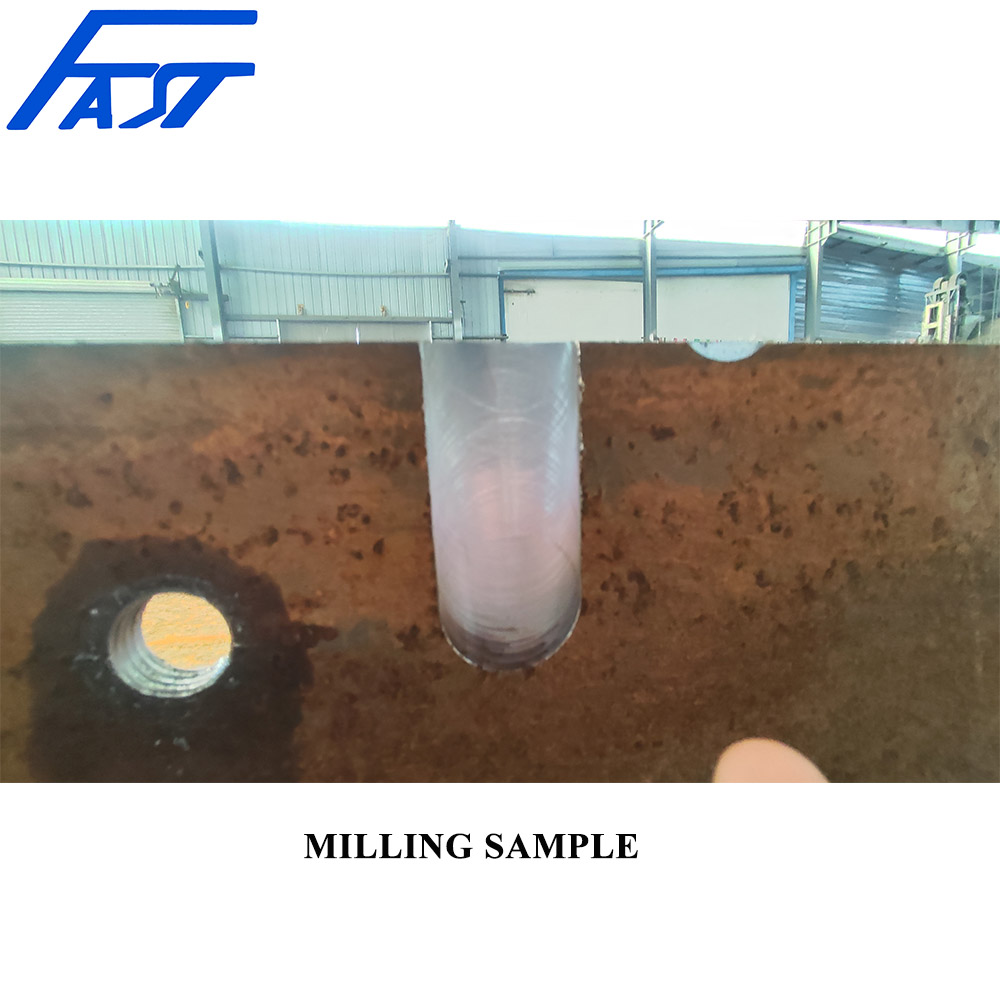

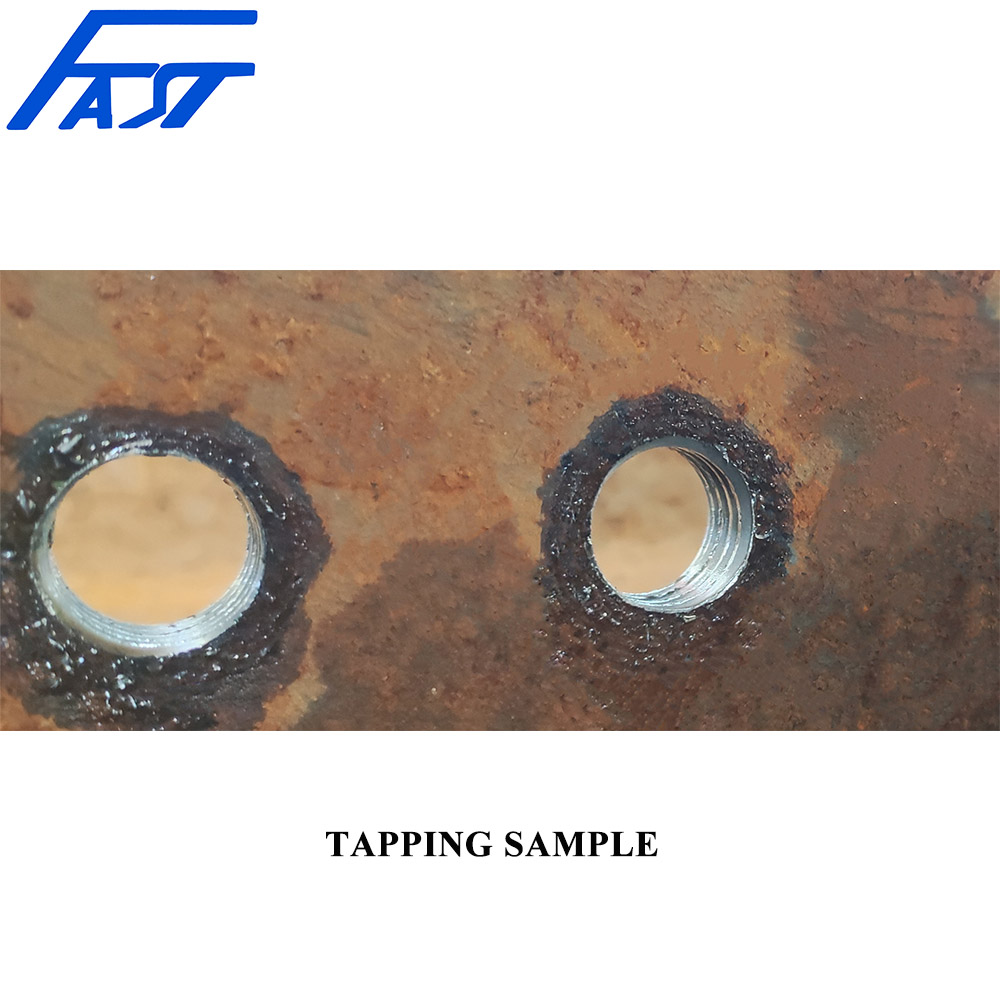

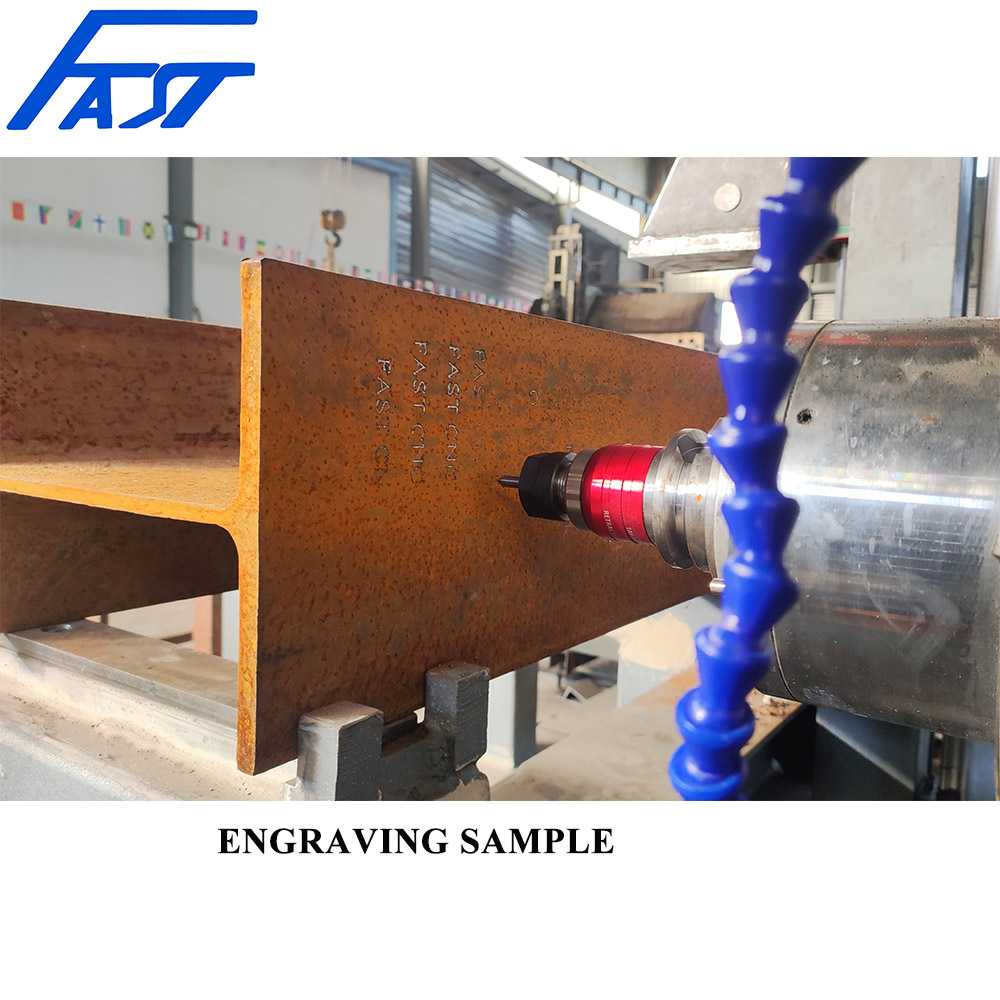

- Machine tool functions: drilling, milling, tapping, scraping.
- The machine can be equipped with a tool magazine.
FEATURES
Craft:
Put the workpiece on the worktable → the workpiece close to the reference side → check whether the tool in the tool magazine meets the processing requirements → tool setting (only when the tool length changes) → start the program to automatically drill holes→ Finished drilling → Take workpiece away from the worktable.TECHNICAL DATA
Name
Unit
Specifications
H-beam: Max. height × Max. width
mm
400×400
H-beam: Max. height × Max. width
mm
150×150
Max. Workpiece length
mm
14000
Maximum workpiece weight
kg
3500
Max. workpiece web thickness
mm
≤30
Spindle Qty
Pc
1
Spindle end taper
BT40(Pneumatic loose tool)
Max. Drilling Diameter
mm
10-40
Tapper
mm
M27
Spindle power
kW
18
Spindle Rated Torque
Nm
118
Spindle speed range
r/min
0~3000
Spindle feed speed
mm/min
0~4000
Spindle feed stroke(Z)
mm
500
Spindle axis(Y)
mm
400
Clamp positioning axis(X1)
mm
14000
Spindle movement stroke(X2)
mm
150
Hydraulic clamp opening
mm
550
Hydraulic clamp max force
t
7 adjustable
Working Precision
Hole distance error in hole group
mm
≤±0.2
Hole spacing error of adjacent hole groups
mm
≤±0.3
Drill cooling method
Spray cooling, external+inner cooling
Bearing, sliding block lubrication method
Automatic lubrication
Worktable Size L×W
mm
14500x1200x1000mm
Total power
kW
About 30
Overall Dimensions L×W×H
mm
About 15500×2200×2200
Control Method
CNC Controlling System
CNC Axes
4+1
ATC Automatic Tool Changer
8
